Technical Specifications LEDDL112-CB
Light distance 700m@0.25lux 350m@1lux
Hot Lumen: 3500lm
Color temperature: 6000K
Rated input power: 60/2,5W
Input voltage: 12/24V
Lifetime: 5.000h
IP Protection: IP69K
ECE: R7, R112 (Ref. No. 50)
EMC/EMI: ECE R10
Ambient temperature: -40°C to 85°C
Cable length: 100cm
Weight: 4441g
Features
Fully ECE compliant auxiliary high beam and
position light ECE R112/ R72)

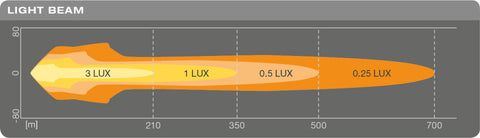

Light range: up to 700m
Combo beam pattern: improved far & near field
illumination
Robust & Resistant: Shatter proof polycarbonate
lens to endure heavy duty application
Over and under voltage protection
Integrated driver and thermal management system
Long-life high-performance LEDs
5-year guarantee
Fields of application
Cars
Trucks
Commercial/Construction vehicles
4x4
ATV
Agriculture
Caravans

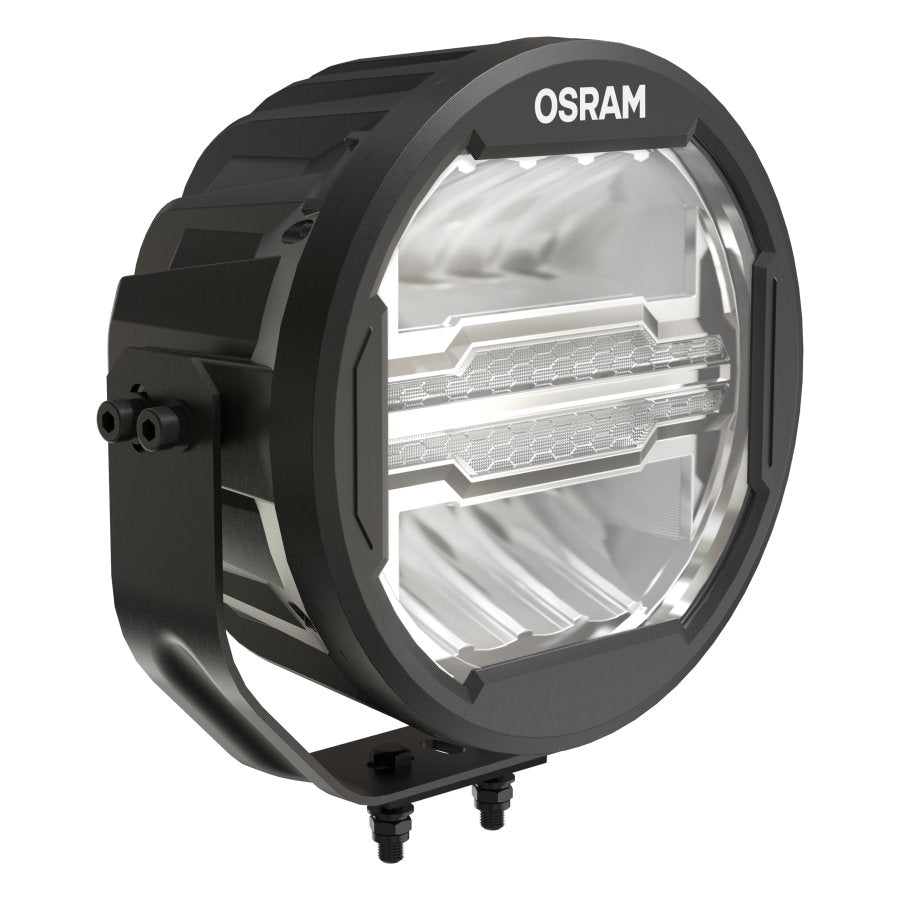

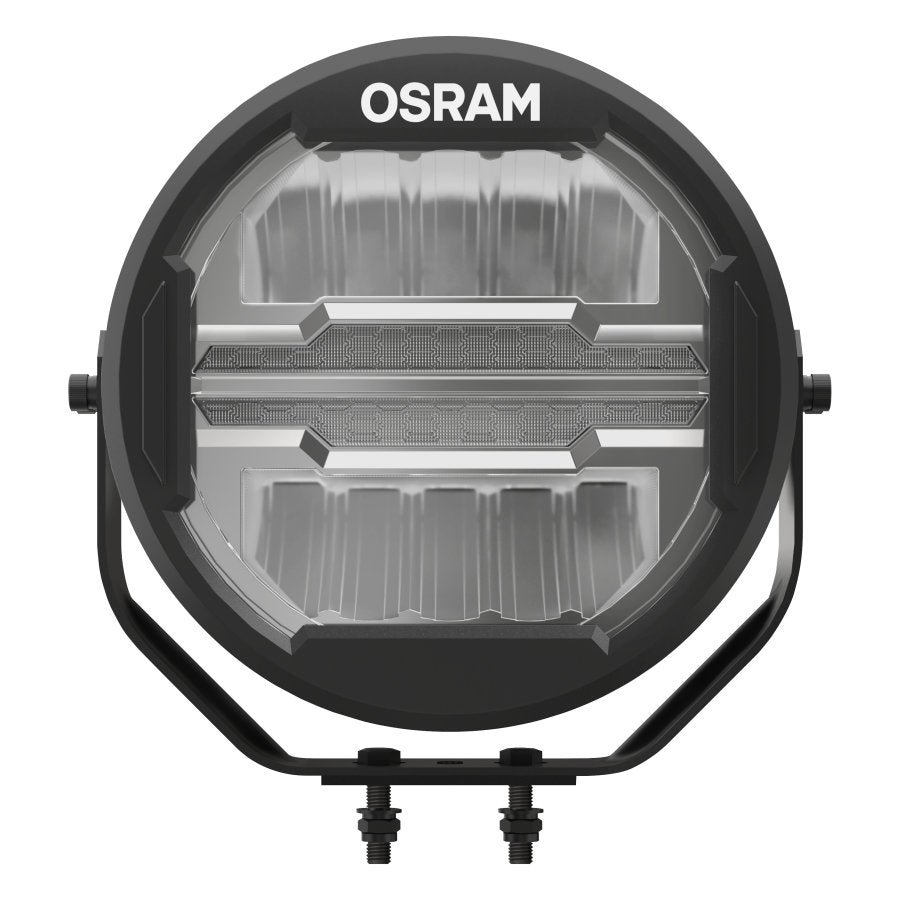

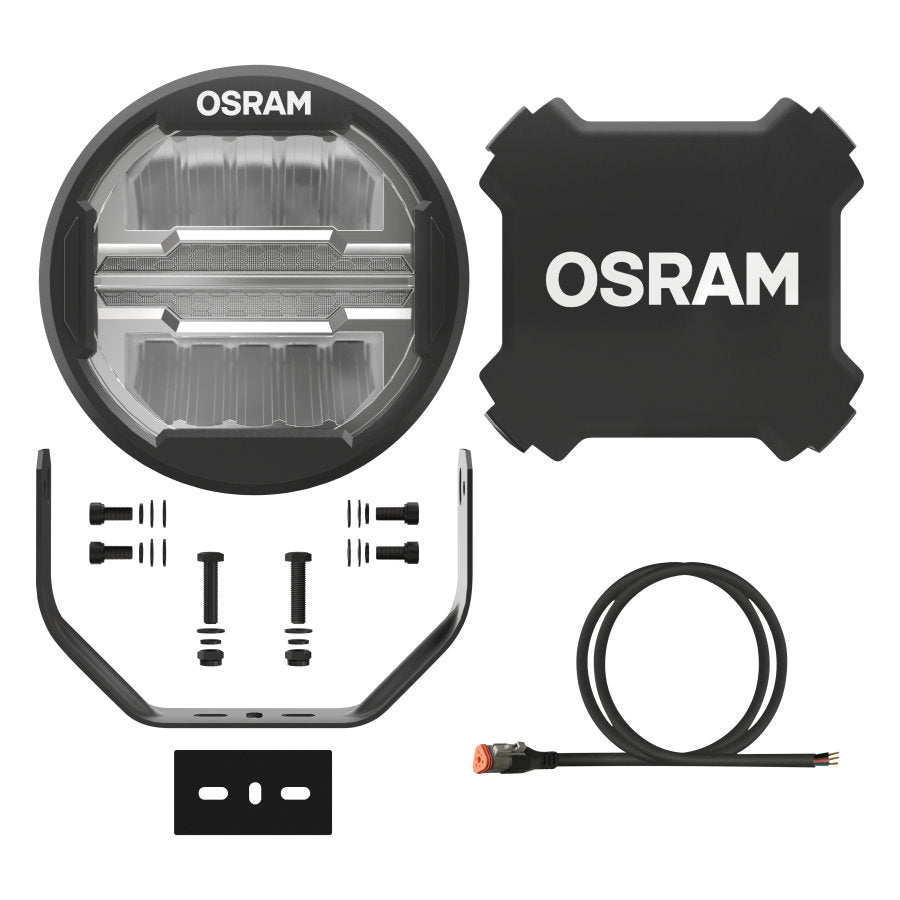

The OSRAM LEDriving Round MX260-CB can be attached to cars,
trucks, agricultural machinery,
farm machinery, commercial vehicles, construction vehicles,
off-road vehicles and quads
The OSRAM Wire Harness AX 2LS wire harness is recommended for use with this product
